Hole shaping?


Post new topic   Reply to topic    ESS Shakuhachi Forum Forum Index -> ESS Forums -> The Workshop
Previous topic :: Next topic
Author Message
Ryuraku
Member

Offline

Joined: 31 Mar 2011
Posts: 18
Localisation: Jersey City, NJ

PostPosted: 2013-08-15, 00:27    Post subject: Hole shaping? Reply with quote

PublicitéSupprimer les publicités ?
Hi Folks,
I recently built up a hole on a large flute I'm making so I could cover the hole easier. I took the idea from my Shugetsu 2.7. See photo attached. My flute is on top of the photo and the Shugetsu is on the bottom. My question is; is there a precedent for this flutemaking technique of building up the holes of a Shakuhachi? Is there an established name/description for this detail? Any info on the subject would be great, thanks.

Back to top
LowBlow
Member

Offline

Joined: 23 Mar 2011
Posts: 224
Localisation: Germany

PostPosted: 2013-08-15, 09:31    Post subject: Hole shaping? Reply with quote

I remember some pics and a discussion on the old BBQ, now to archives. It is worth searching there.
Back to top
Visit poster’s website
Kiku Day
Moderator

Offline

Joined: 20 Mar 2011
Posts: 865
Localisation: Nr Snede, DK/London UK

PostPosted: 2013-08-16, 20:50    Post subject: Hole shaping? Reply with quote

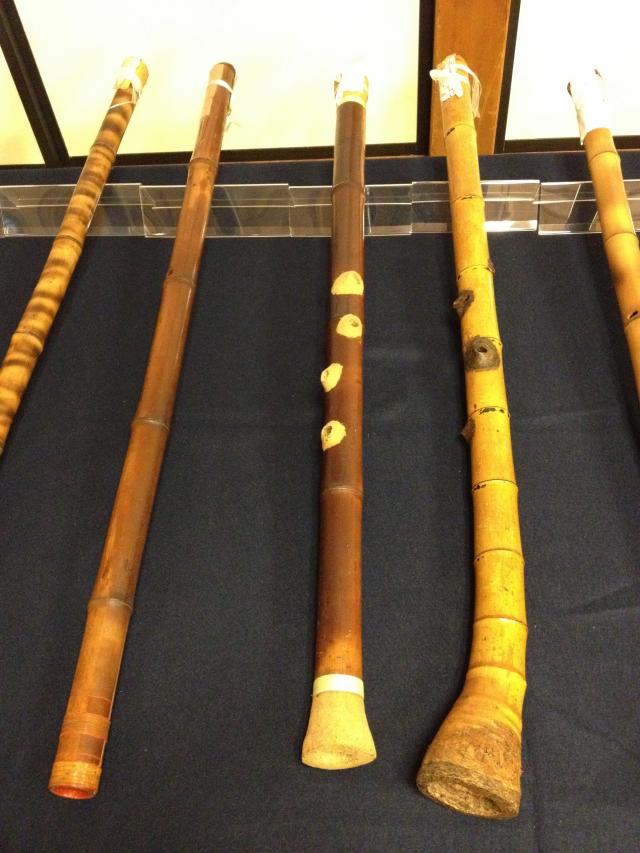

There was a guy named Iwamizu Genpu, born in 1913, who made finger holes like that.
Below is some of the extreme ones. As far as I know there is no particular name for this technique.... but that can just be me not knowing.
Iwamizu's collection of extreme and amazing flutes can be seen in the Jinashi Museum led by Shimura Zenpo in Osaka.

Back to top
Visit poster’s website Skype
felix martens
Member

Offline

Joined: 23 Jun 2013
Posts: 126

PostPosted: 2013-08-17, 06:25    Post subject: Hole shaping? Reply with quote

Does that mean that the actual size of the holes is not crucial to the sound or are we entering a very technical area of shakuhachi making?
Back to top
Ryuraku
Member

Offline

Joined: 31 Mar 2011
Posts: 18
Localisation: Jersey City, NJ

PostPosted: 2013-08-18, 13:46    Post subject: Hole shaping? Reply with quote

Kiku, thanks for your reply. I recall seeing those flutes at WSF 2012. They definitely looked fantastic, unfortunately I didn't have a chance to HEAR them. My impression for this technique is that it's fairly modern, but I could be wrong. I wonder if flutemakers other than Shugetsu use this technique, and if it only applies to long flutes.
Back to top
LowBlow
Member

Offline

Joined: 23 Mar 2011
Posts: 224
Localisation: Germany

PostPosted: 2013-08-18, 14:15    Post subject: Hole shaping? Reply with quote

felix martens wrote:
Does that mean that the actual size of the holes is not crucial to the sound or are we entering a very technical area of shakuhachi making?


No, hole size and shape affects pitch and sound/timbre a lot.
Back to top
Visit poster’s website
Perry Yung
Professional Member

Offline

Joined: 22 Mar 2011
Posts: 346
Localisation: New York City, UWS

PostPosted: 2013-08-18, 17:58    Post subject: Hole shaping? Reply with quote

Ryuraku wrote:
Hi Folks,
I recently built up a hole on a large flute I'm making so I could cover the hole easier. I took the idea from my Shugetsu 2.7... My question is; is there a precedent for this flutemaking technique of building up the holes of a Shakuhachi? Is there an established name/description for this detail? Any info on the subject would be great, thanks.


Hey Ryuraku, Your work looks great!

I first saw raised tone holes in 2002 when I started studying with Kinya in Saitama, Japan. He used two methods - bamboo dust built up with CA Glue and/or Ji plaster. Both were sealed and finished with urushi lacquer that matched the bamboo color. Then, I saw Shugetsu's work at the Big Apple Shakuhachi Festival in 2004 in New York City. It was similar to Kinya's finished work - refined and elegant. Sometime around then, I received a John Neptune 2.7 Chokan to work on that had a raised Tsu tone hole. I don't know who did the work but it was done with bamboo dust and glue. It wasn't finished with urushi but still polished and well-crafted. Recently, Jim had me do similar work on his 2.4. He said that John called them Geta (after the Japanese platform shoes). I had been doing these in Kinya's style but decided to do a Geta for Jim's flute since it was for the tiny Tsu meri hole. For the chimney, I used a small bamboo branch off the stalk.



Lowblow wrote:
No, hole size and shape affects pitch and sound/timbre a lot.

Yes they do!

Cheers, Perry
_________________
"A hot Dog is not an animal" - Jet Yung
Blog on shakuhachi, art and parenting - www.yungflutes.com


Last edited by Perry Yung on 2013-08-19, 04:49; edited 1 time in total
Back to top
Visit poster’s website
Itamar Foguel
Member

Offline

Joined: 22 Mar 2011
Posts: 103
Localisation: Israel

PostPosted: 2013-08-18, 20:55    Post subject: Hole shaping? Reply with quote

funny i was wondering about the same thing very recently, in my opinion there are 2 reasons to make that "chimney".

1 - the longer the chimney the lower the pitch - which means, you can make a very big flute, and use this technique on some of the holes in order to make them higher in the bore and easier to reach. (i saw it done on a bansuri by a maker here in israel, he used an oval part of the bamboo wall as a platform on top of the flutes bamboo in order to make it thicker, and in that lower pitch, and the hole was positioned higher on the flute.

2 - half chimney like what you have done in the picture, i saw one of those on one of Pepe's flute's, a 3.0 and the only reason it is done is to allow an easier seal for the thumb hole on large flutes.

unfortunately i don't have any picture of either at the moment, but i hope my explanation was clear.

Itamar
Back to top
Visit poster’s website
x moran
Member

Offline

Joined: 22 Mar 2011
Posts: 172
Localisation: claremont california

PostPosted: 2013-09-11, 10:48    Post subject: Hole shaping? Reply with quote

Perry Yung wrote:
I received a John Neptune 2.7 Chokan to work on that had a raised Tsu tone hole. I don't know who did the work but it was done with bamboo dust and glue. It wasn't finished with urushi but still polished and well-crafted. Recently, Jim had me do similar work on his 2.4. He said that John called them Geta (after the Japanese platform shoes). I had been doing these in Kinya's style but decided to do a Geta for Jim's flute since it was for the tiny Tsu meri hole. For the chimney, I used a small bamboo branch off the stalk.




Brilliant solution, Perry.
