Binding?
Goto page: 1, 2, 3  >

Post new topic   Reply to topic    ESS Shakuhachi Forum Forum Index -> ESS Forums -> The Workshop
Previous topic :: Next topic
Author Message
david
Member

Offline

Joined: 23 Mar 2011
Posts: 29
Localisation: germany

PostPosted: 2011-06-19, 13:17    Post subject: Binding? Reply with quote

PublicitéSupprimer les publicités ?
I have a flute that needs binding. I want to try and do it myself. I have been looking at some nice colorful nylon, but I want to keep it natural. What type of natural bindings are there and where do I get them?
What did they use before plastics and synthetics?

Thanks in advance,
_________________
david
Back to top
Brian Tairaku Ritchie
Moderator

Offline

Joined: 18 Mar 2011
Posts: 635
Localisation: Hobart, Tasmania, Australia

PostPosted: 2011-06-19, 14:03    Post subject: Binding? Reply with quote

They used rattan. That's why the flutes were always cracking. Wink Twisted Evil
Back to top
david
Member

Offline

Joined: 23 Mar 2011
Posts: 29
Localisation: germany

PostPosted: 2011-06-19, 15:22    Post subject: Binding? Reply with quote

Thanks Brian!Wink
Where do I get rattan anyway? Online?
Any other suggestions welcome!
_________________
david
Back to top
LowBlow
Member

Offline

Joined: 23 Mar 2011
Posts: 224
Localisation: Germany

PostPosted: 2011-06-19, 15:41    Post subject: Binding? Reply with quote

put the inlaid nylon binding under the inlaid rattan binding.
Back to top
Visit poster’s website
david
Member

Offline

Joined: 23 Mar 2011
Posts: 29
Localisation: germany

PostPosted: 2011-06-19, 15:46    Post subject: Binding? Reply with quote

It can't be inlaid. Its all topical.
I just need a source of where to get it.
_________________
david
Back to top
Itamar Foguel
Member

Offline

Joined: 22 Mar 2011
Posts: 103
Localisation: Israel

PostPosted: 2011-06-19, 21:14    Post subject: Binding? Reply with quote

the rattan that is used most of the times for bindings is 2 rin rattan (0.6 mm).
it can be bought here:
http://www.mejiro-japan.com/system/index_e.php?c_id=51

its not cheap. i was able to get a 4 rin rattan (1.2mm) from a local basket weaver for free, you can also buy it cheap im sure. rattan is the material usually used for weaving.

Any way another simpler option is getting a synthetic strong thread in a color you like or a mono-filament (fishing line).
a very good thread with many colors is called eurotool tuff cord.

anyway you should search the old forum for "binding" you will get a lot of info there. (www.shakuhachiforum.com)

Good luck
Back to top
Visit poster’s website
Jeff Cairns
Professional Member

Offline

Joined: 23 Mar 2011
Posts: 191
Localisation: Kumamoto-shi, Japan

PostPosted: 2011-06-20, 06:27    Post subject: Binding? Reply with quote

I can get .75mm (slightly larger than 2 rin) rattan at a local fishing shop. To do the nakatsugi of a shakuhachi would cost around 2000 yen (a little over $20 US). Shipping would cost another $5 - $10. If you're interested, I'd be happy to help you out.
Back to top
Visit poster’s website Skype
Brian Tairaku Ritchie
Moderator

Offline

Joined: 18 Mar 2011
Posts: 635
Localisation: Hobart, Tasmania, Australia

PostPosted: 2011-06-20, 08:17    Post subject: Binding? Reply with quote

If you want decorative bindings rattan is OK but if you want something to hold the flute together and stop it from cracking you're better off with nylon.
Back to top
Michael Vincent
Member

Offline

Joined: 03 Jul 2011
Posts: 13
Localisation: NYC

PostPosted: 2011-07-05, 05:26    Post subject: Binding? Reply with quote

I just bound a new shak with nylon Tuff Cord. I used a size 7 which only comes in black or white, but they have size 5 or smaller in a whole bunch of colors. To be honest, the size 7 was a little tough to work with. My thumbs were sore for 2 days afterwards from keeping pressure on the first and last couple passes of each binding. If I remember correctly, Office Depot carries little rubber thumb condoms for people who sort papers all day. I think it may be worth trying those out to help get a better grip on the nylon cord. Laughing
Back to top
Itamar Foguel
Member

Offline

Joined: 22 Mar 2011
Posts: 103
Localisation: Israel

PostPosted: 2011-07-16, 22:08    Post subject: Binding? Reply with quote

Brian, what is your preferable style of bindings? inlaid rattan? Mono-filament? nylon cord with urushi?
Back to top
Visit poster’s website
Brian Tairaku Ritchie
Moderator

Offline

Joined: 18 Mar 2011
Posts: 635
Localisation: Hobart, Tasmania, Australia

PostPosted: 2011-07-17, 01:13    Post subject: Rattan is crap. Reply with quote

Hi Itamar,

There are so many kinds of binding..................and it depends whether you are creating new binding or if you are replacing old. Because for example if there is already a groove cut into the wood it's not your decision whether to destroy the nobe integrity.

Let's say it is a brand new piece of bamboo and you just want to protect it from cracking with precautionary bindings. Then I would prefer external nylon bindings. And I do like urushi paint over it. I don't tend to cut into the wood. Some people say it changes the tone although I must admit in cases where I've had to because of cracking, I did not notice that it changed the tone.

Rattan is crap. Cool It has a tendency to come undone, fray etc. I also don't think it looks good, really can't understand why people are so hypnotized by it. So in the case of a flute with rattan binding that needs to be replaced, I like to have the rattan removed, the underlying nylon or whatever replaced with new nylon and then ideally either cherry or some other wood, or just multiple coats of urushi.

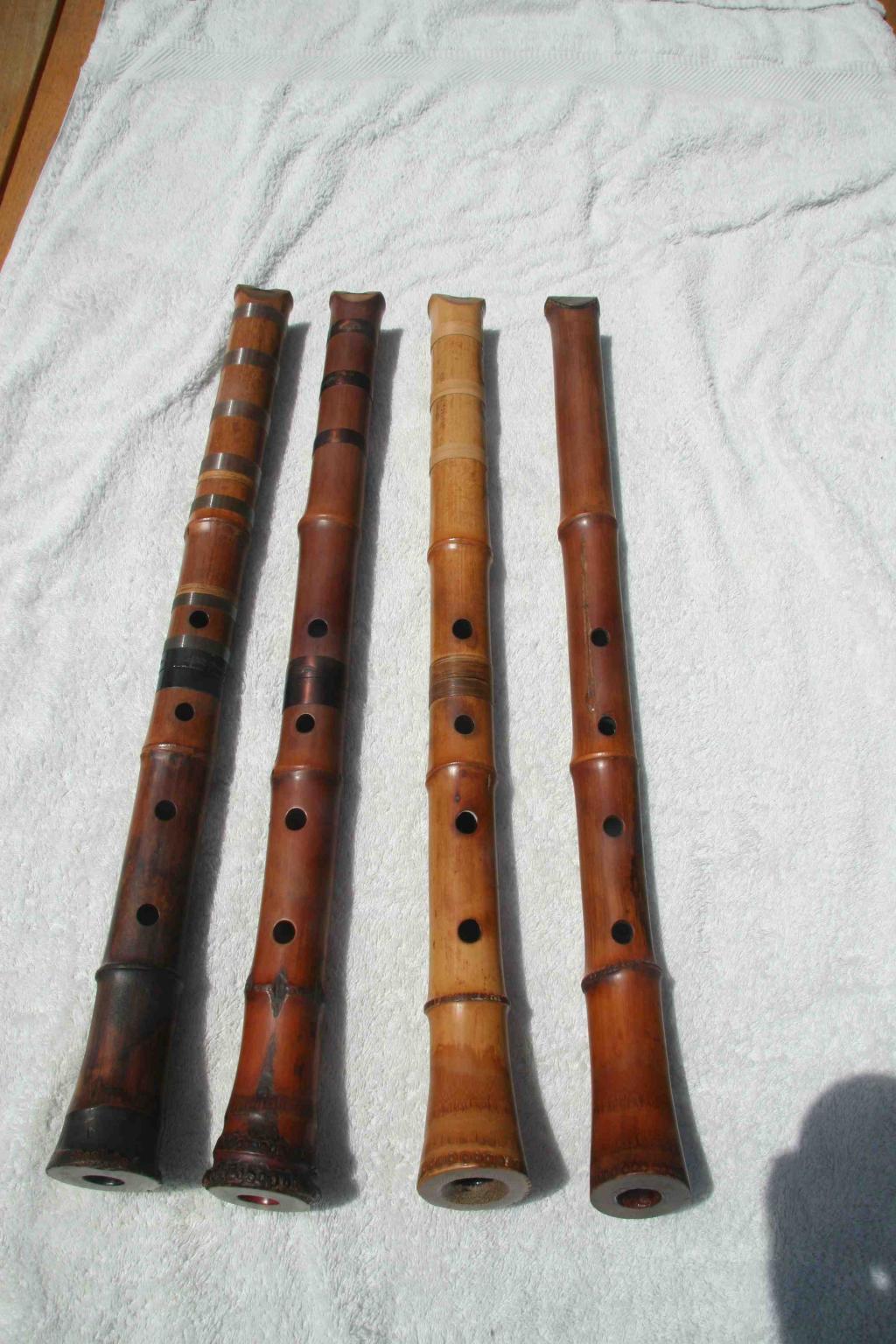

Here's my Miura Kindo with cherry wood bindings by Kiyoshi Kudo. It's second from left.

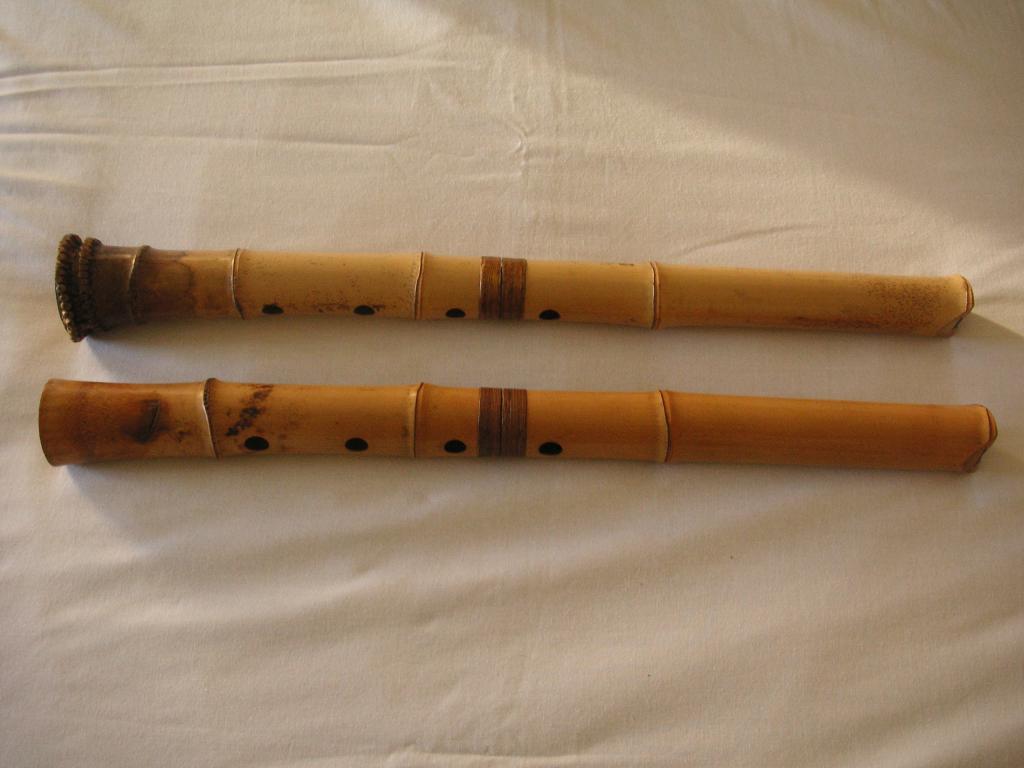

Perry Yung did something similar for me on the nakasuge of a 1.6 Momose Hodo which needed bindings replaced. I forget what wood it is. It's the one on top.



Here's a good example of nylon bindings painted over with urushi because the flute was cracked to smithereens and really needed some help. This is a very practical method. The flute is a 2.3 Taimu called Frankenschwantz.

url=http://www.shakuhachiforum.eu/image/71/1/7/3/frankenschwantz-2ae0dbf.jpg.htm]
[/url]

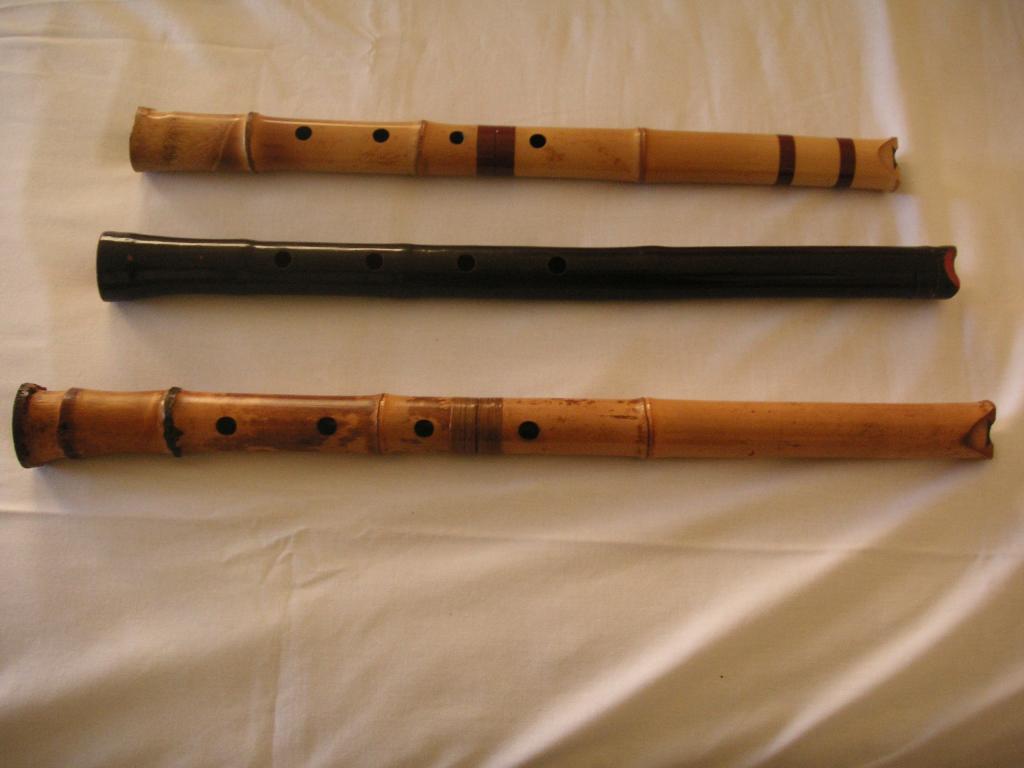

If you look at the 1.7 at the top of this pic you can see a very refined version of nylon covered with urushi. This is very nice but it can chip. Still, much more stable than rattan.



As far as I'm concerned these are all better solutions than rattan. Rattan is an example of tradition being followed past its used-by date.


Last edited by Brian Tairaku Ritchie on 2011-07-17, 01:29; edited 1 time in total
Back to top
Itamar Foguel
Member

Offline

Joined: 22 Mar 2011
Posts: 103
Localisation: Israel

PostPosted: 2011-07-17, 01:29    Post subject: Binding? Reply with quote

so if one of your flutes gets cracked, you tend to ask for an inlaid or non inlaid binding?

I found out so far that other then for looks, you can have a very thin mono-filament uniform bindings that does not interfere with playing very much even if the whole flute is bound.

cant see much from the picture but using tree barks as a replacement for rattan in inlaid binding seems like a nice idea, and more economical wise also (since rattan string prices are sky high).

Im binding few flutes right now and im just thinking about some of them which im not sure what should i do.
i know how to do inlaid bindings and did them in the past, but they are a lot of work, and rebinding them if they give up is a real pain in the... Rolling Eyes
Back to top
Visit poster’s website
Brian Tairaku Ritchie
Moderator

Offline

Joined: 18 Mar 2011
Posts: 635
Localisation: Hobart, Tasmania, Australia

PostPosted: 2011-07-17, 01:43    Post subject: Binding? Reply with quote

Itamar Foguel wrote:
so if one of your flutes gets cracked, you tend to ask for an inlaid or non inlaid binding?


Usually non-inlaid, but even if they are inlaid I don't ask for rattan because the repairmen I work with tell me it's strictly ornamental and serves no practical purpose. And I don't like the way it looks either.
Back to top
Jeff Cairns
Professional Member

Offline

Joined: 23 Mar 2011
Posts: 191
Localisation: Kumamoto-shi, Japan

PostPosted: 2011-07-17, 08:45    Post subject: Binding? Reply with quote

Not to confuse things, but just to offer a different opinion. I will choose inlaid rattan or urushi covered filiment over any other method.

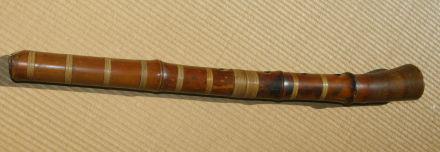

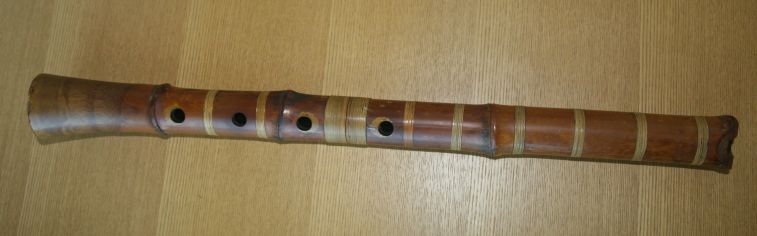

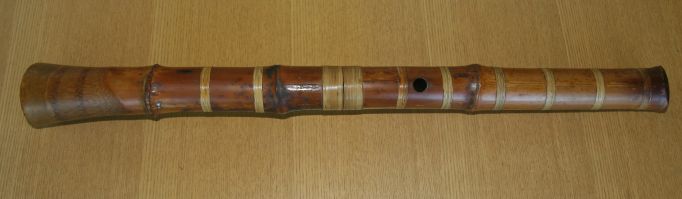

Here are a couple of photos of my Kyomudo 1.8 that burst open in many places 21 years ago. The repair was done by Kyomudo sensei at that time with inlaid rattan and it hasn't budged in all that time.



The thing that I like about inlaid binding is that the inlay protects the outside edges of the rattan from wear, and depending on where the binding is, it doesn't create a grip irregularity.
Back to top
Visit poster’s website Skype
Brian Tairaku Ritchie
Moderator

Offline

Joined: 18 Mar 2011
Posts: 635
Localisation: Hobart, Tasmania, Australia

PostPosted: 2011-07-17, 11:11    Post subject: Binding? Reply with quote

Sure Jeff,

Inlaid bindings are nice........people say it changes the sound but I don't agree. People have to also consider the price of the various repairs. In the case of a serious flute like my Kindo I did not spare any expense. And the cherry was over inlaid bindings. For many of the more inexpensive instruments inlaid rattan bindings like yours would be more expensive than the flutes themselves if you got it done in Japan or even from the Western guys. It also depends whether the instrument needs bindings as a repair measure as in your case or if it it precautionary. I always spend less on precautionary bindings than on the ones for cracked flutes, because some flutes never crack.

Nice looking flute! I hope I can try it sometime.
